2. Dashboard

2.1 Overview

The Dashboard is the first page you see after logging in — an at-a-glance view of the gateway's health: system resources, network status, and basic identification.

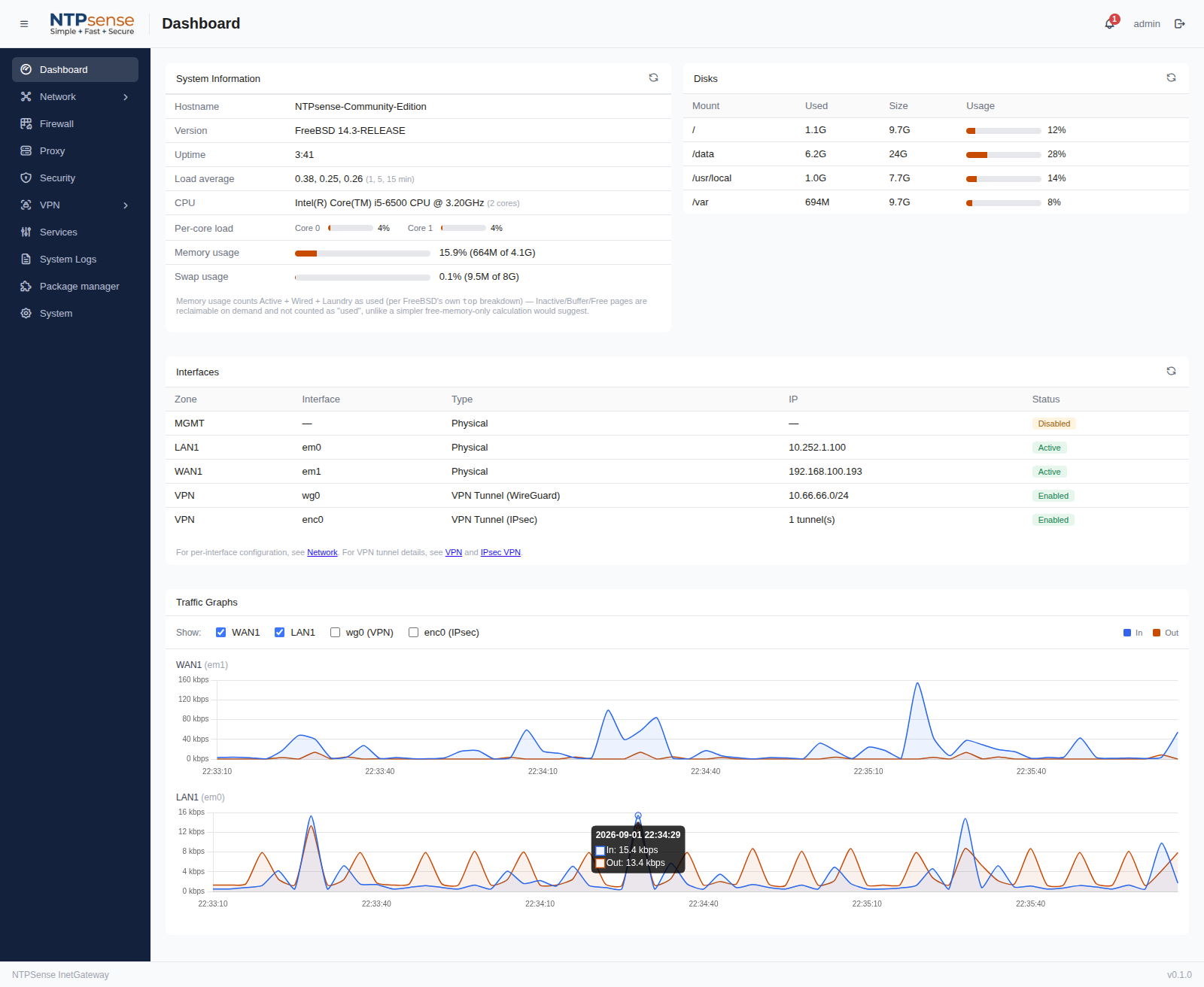

dashboard.png Full dashboard page

2.2 System Resources

The dashboard shows live CPU, memory, swap, and disk usage, refreshed automatically.

  • CPU — shown per core (not just an aggregate number), along with the detected CPU model and core count.
  • Memory — RAM currently in use versus total installed.
  • Swap — how much swap space is active and how much is currently used.
  • Disk — usage per partition (root, /var, /usr/local, and /data).


Per-core CPU load widget

2.3 System Identity

A summary panel shows the gateway's hostname, NTPSense version, FreeBSD version, and uptime.

2.4 Network Summary

A quick-glance table lists each configured interface, its assigned IP address, and whether it's currently up or down.
